Level measurement

Level measurement

The filling level is to be measured in all CIP tanks so that the availability of the acids and lyes is ensured. Here, a limit value monitoring function and switching functions can be used to switch such devices as valves or pumps to regulate the amount of fluid.

Recommended solution for level measurement

Discontinued model
405052_504_DELOS_SI_Edelstahl.tif - Precision pressure transmitter with switching contact and display

JUMO DELOS SI
Precision pressure transmitter with switching contact and display Basic type: 405052
  • Measuring range: 0 to 60 bar relative/absolute
  • Accuracy as of 0.1 % from end value
  • Measuring range scaling 1:4
dtrans p32_ju2382.tif - Pressure transmitter

JUMO dTRANS p30
Pressure transmitter Basic type: 404366
  • 600 bar relative to 25 bar absolute
  • Temperature: -30 to +120 °C
  • Protection type: IP65/IP67
Warning

Warning

Invalid configuration found. Contact the administrator.

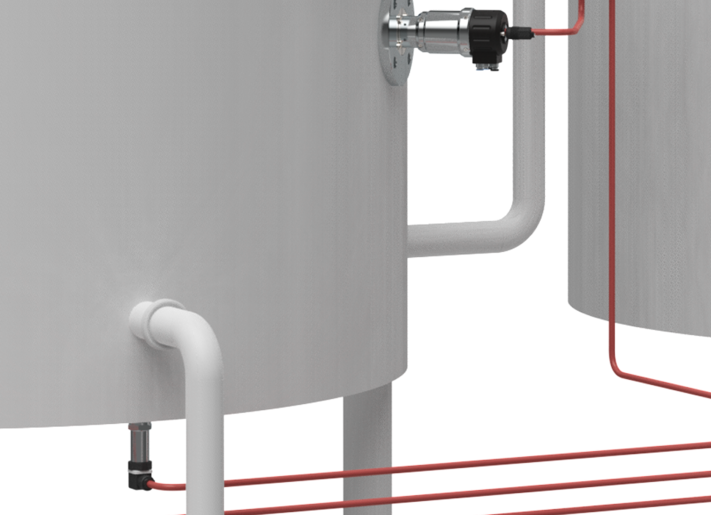

Optimum availability in the CIP plant

Our solution for level measurement in CIP tanks

We recommend the JUMO DELOS SI, which not only measures and displays the filling level. The pressure switch is also able to switch a pump on or off using minimum and maximum values, thus ensuring the level in the CIP plant.
